When setting up an outboard boat, one of the most important adjustments is correctly measuring the engine height. Proper engine height directly affects performance, fuel efficiency, hole shot, water pressure, and overall handling. Many boat owners overlook this step, but learning how to measure it accurately can make a significant difference on the water.

To determine engine height, the boat should first be level on the trailer. Next, trim the outboard until the prop shaft is perfectly level. This is critical, the prop shaft must be level to get an accurate measurement.

Once the motor is level, place a straight edge along the bottom of the hull, extending it back past the lower unit. This provides a true reference point for the boat’s running surface.

To calculate true engine height, customers must measure from the center of the prop shaft to the cavitation plate (also called the anti-ventilation plate). Then, subtract that measurement from the distance between the straight edge (running surface reference) and the cavitation plate. This gives you the true engine height relative to the bottom of the hull.

This method ensures you are not guessing or relying on jack plate markings, which can vary between manufacturers and applications.

On most newer 4-stroke applications, engine height typically falls between 2 inches to 2-3/8 inches above the running surface as a starting point. However, this can vary depending on hull design, setback, gearcase style, and intended use. Always adhere to the manufacturer’s specifications for your specific engine and application.

Taking the time to measure carefully ensures your motor is set at the correct height for optimal performance. A properly adjusted engine will reduce drag, improve top-end speed, improve holeshot, and help prevent ventilation issues, resulting in a smoother, more efficient ride.

Example:

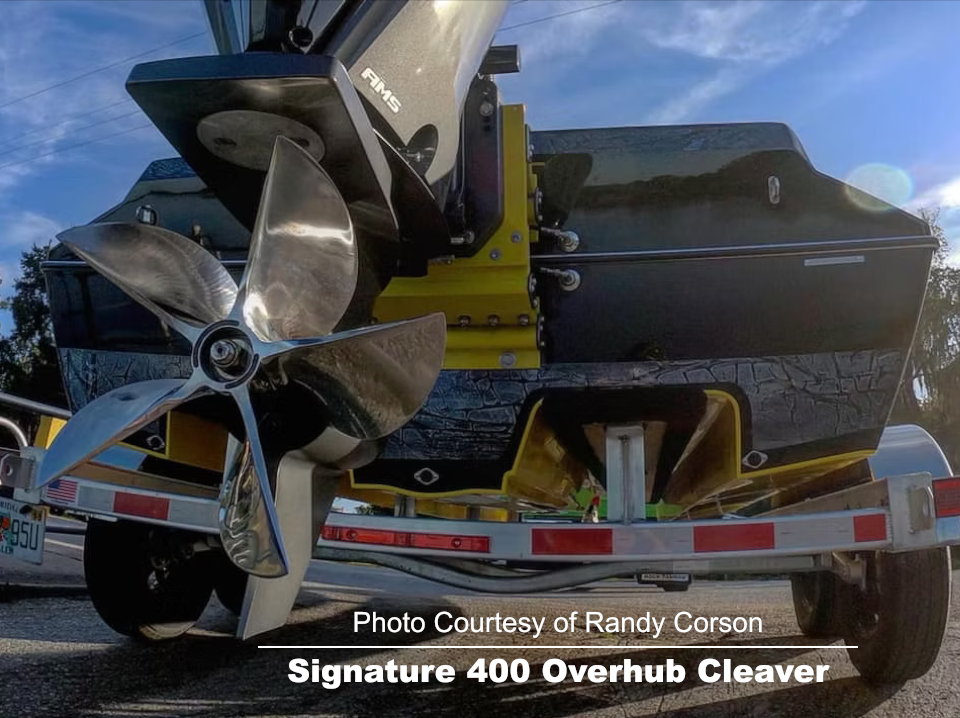

21 Liberator powered by a Mercury 300R outboard, We typically start by setting the engine approximately 2" to 2-3/8" above the bottom running surface (boat level on trailer, engine level). From there, we fine-tune based on water pressure, RPM, handling, and propeller selection.
